The Alpro ALP200D also known as the Cobalt YD30 is a revolutionary low voltage motor driven electronic lock for 180° swing doors. It has been designed to secure double action doors and addresses the two biggest issues in door locking; the ability to align a misaligned door and the ability to release when requested, even with excessive load on the door.
The ALP200D is typically used in commercial doors and controlled by access control systems.
Features Include
- Automatic misalignment correction
- Side Load Release
- High Security
- Dual Monitoring
- 3 Year Guarantee
Suitable for
Timber, Aluminium and Glass Doors
Door Alignment
Door misalignment of up to +/- 8mm is automatically corrected
Door Gap
Max. 6mm (1/4 inch)
Side Load Release
The door can have in excess of 600kg (1,350 lbf) being applied and it will still release instantly when requested
Simple Configuration
Convert from fail safe to fail secure by repositioning a single jumper
High Security
Automatic deadlocking
10,000N holding force (1,000kg)
Two, 10mm thick stainless steel bolt pins
13mm bolt length
Lock/Strike Plate Material
Stainless Steel grade 304
Electrical Specification
Input voltage from 12vDC-24vDC Less than 40mA standby current
Reverse polarity and transient protection Multiple attempts to lock
Dual Monitoring
Door and bolt position monitors
Initial Power Up Time & Current
11 seconds, 0.75A@12VDC, 0.4A@24VDC
Standby Current
40mA@12VDC, 25mA@24VDC
Versatile Installation
Mortice mount horizontally or vertically, on double action doors
Surface mount using the ALP200D accessories, including mounting onto glass
Physical Dimensions
255mm (L) x 30mm (W) x 47mm(D)
Certifications – UKCA & CE Marked
RoHS Directive 2011/65/EU + Amendment Directive (EU) 2015/863
Electromagnetic Compatibility (EMC) Directive 2014/30/EU EN 61000-6-1:2019 Electromagnetic compatibility (EMC) -Part 6-1: Generic standards – Immunity for Residential, Commercial and Light-Industrial Environments
EN 61000-6-3:2021 Electromagnetic compatibility (EMC) -Part 6-3: Generic Standards – Emission Standard for Residential, Commercial and Light-Industrial Environments
Surface mounting a lock and/or strike with the aid of the ALP200D accessories offers more flexibility in installation and makes securing glass doors possible. Dress plates are offered to give a ‘clean’ finish when a housing has been installed onto glass. The housing and dress plate are supplied with self-adhesive tape for instant application to glass doors and frames.
| Description | Code | |
| Cobalt electronic lock and strike plate | ALP200D | |
| Accessories | ||

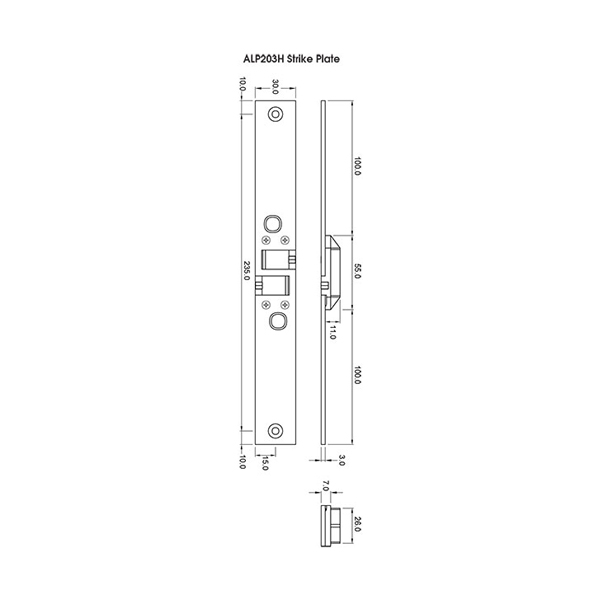

| Cobalt Strike Plate – 255mm (L) x 30mm (W) x 3mm (D) | ALP203H | |
| Cobalt Housing with tape – 259mm (L) x 34mm (W) x 56mm (D) | ALP204J | |
| Cobalt Dress Plate with tape – 260mm (L) x 58mm (W) | ALP206J | |
| Cobalt Fixing Tab for use on Mortise installations only – metal extrusion | ALP 208 | |
| 5m Wire Loom | ALP209A |
