The Alpro ALP210S, also known as a YD30S Cobalt-Mini, is a revolutionary low voltage motor driven electronic lock for 90° swing doors. It has been designed to secure single action doors and addresses the two biggest issues in door locking; the ability to align a misaligned door & the ability to release when requested, even with excessive load on the door. It’s small footprint ensures the mini lock can be installed in most locations. The ALP210S is typically used in commercial doors and controlled by access control systems.
Features Include
- Automatic misalignment correction
- Side Load Release
- High Security
- Dual Monitoring
- 3 Year Guarantee
Suitable for
Timber, Aluminium and Glass Doors
Door Alignment
Door misalignment of up to 8mm is
automatically corrected
Door Gap
Max. 6mm (1/4 inch)
Side Load Release
The door can have in excess of 600kg (1,350 lbf)
Simple Configuration
Convert from fail safe to fail secure by repositioning a single jumper
High Security
Automatic deadlocking
10,000N holding force 1,000kg (2,250lbf) 10mm thick stainless steel bolt pin
13mm bolt length
Materials
Lock/Strike Plate – Stainless Steel grade 304
Bolt – Stainless Steel 17-4 PH
Cycle Tested – 1,000,000
Electrical Specification
Input voltage from 12vDC-24vDC
Less than 40mA standby current
Reverse polarity and transient protection
Multiple attempts to lock
Dual Monitoring
Door and bolt position monitors
Initial Power Up Time & Current
11 seconds, 0.75A@12VDC, 0.4A@24VDC
Standby Current
40mA @ 12VDC, 25mA @ 24VDC
Versatile Installation
Mortice mount horizontally or vertically, on single action doors
Surface mount using the ALP210S accessories, including mounting onto glass
Physical Dimensions
160mm (L) x 30mm (W) x 47mm (D)
Certifications – UKCA & CE Marked
RoHS Directive 2011/65/EU + Amendment Directive (EU) 2015/863
Electromagnetic Compatibility (EMC) Directive 2014/30/EU EN 61000-6-1:2019 Electromagnetic compatibility (EMC) -Part 6-1: Generic standards – Immunity for Residential, Commercial and Light-Industrial Environments
EN 61000-6-3:2021 Electromagnetic compatibility (EMC) -Part 6-3: Generic Standards – Emission Standard for Residential, Commercial and Light-Industrial Environments
Accessory Information
Surface mounting a lock and/or strike with the aid of the ALP210S accessories offers more flexibility in installation and makes securing glass doors possible. Dress plates are offered to give a ‘clean’ finish when a housing has been installed onto glass. The housing and dress plate are supplied with self-adhesive tape for instant application to glass doors and frames.
| Description | Code | |
| Cobalt-Mini electronic side load lock and strike plate | ALP210S | |
| Accessories | ||

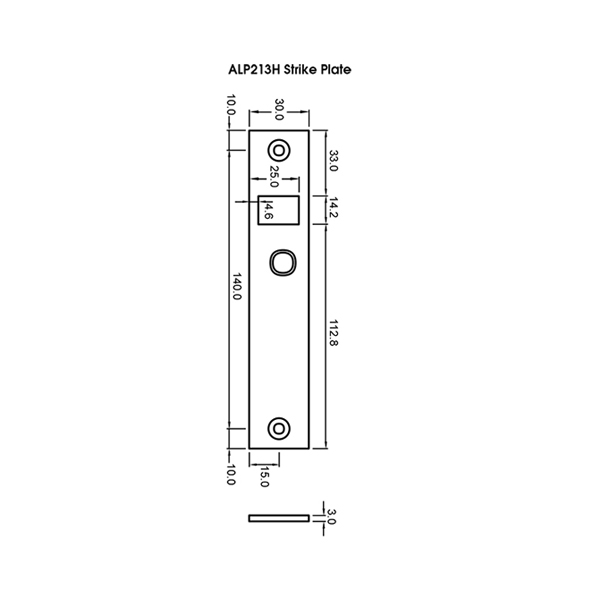

| Cobalt-Mini Strike Plate – 160m (L) x 30mm (W) x 3mm (D) | ALP213H | |
| Cobalt-Mini Housing with tape – 164mm (L) x 34mm (W) x 56mm (D) | ALP214J | |
| Cobalt-Mini Dress Plate with tape – 165mm (L) x 58mm (W) | ALP216J | |
| Cobalt Fixing Tab for YD30S for use on Mortise installations only – metal extrusion | ALP208 |
