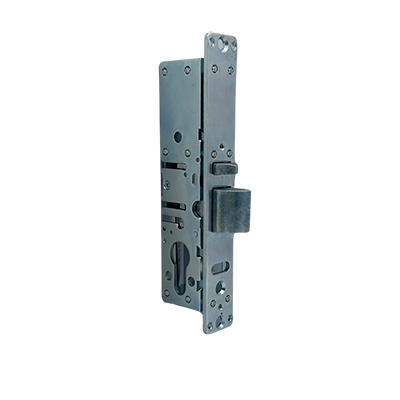

Europrofile cylinder deadlatches offer flexible control of situations and can be used in conjunction with Alpro’s range of electric strikes to provide the added option of remote access control. Designed to operate on doors with 3mm door gaps. Deadlocks accept standard 17mm europrofile cylinders and thumbturn.
They come in a variety of backsets and cylinder configurations, along with a selection of faceplates available in a variety of surface finishes.
Features Include
- Range of Backsets Available
- Europrofile or Round Mortice Cylinder Options
- Latch Hold Back Facility
- 3 Year Guarantee
The deadlatch is designed to be used with various exit trim, such as a paddle handle. When the handle is operated the latch bolt will retract thereby allowing the door to be opened. However the “dead latching” facility means that when the door is closed, nothing can be inserted into the gap between the door and frame to force the latch bolt and thereby allow unauthorised entry.
- Industry standard ANSI cut outs
- Europrofile or round mortice cylinder options
- Latch hold back facility
- Latches compatible for use with electric strikes
Faceplates

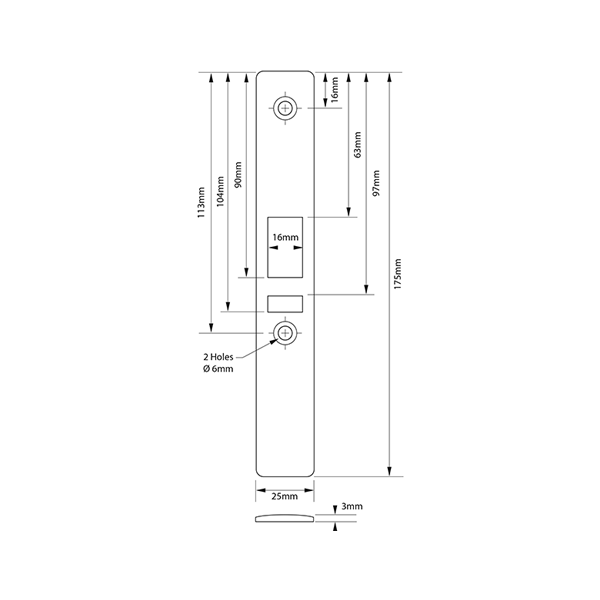

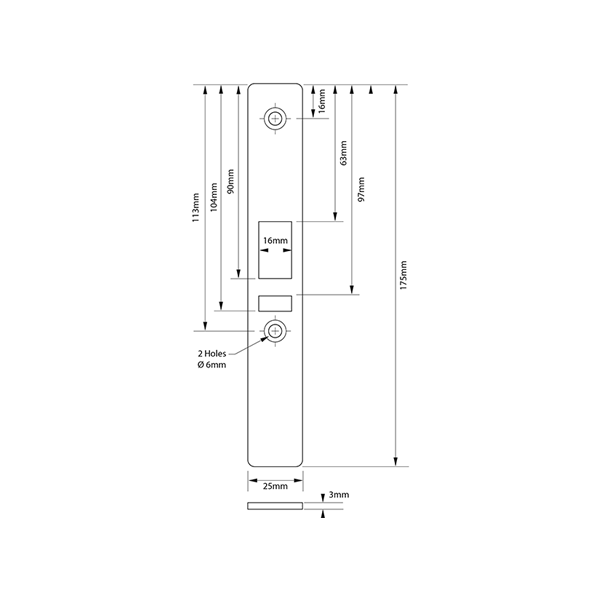

Flat faceplate – width 25mm
Radius faceplate – width 25mm
Radius faceplate with weather strip – width 25mm
Finish – SAA

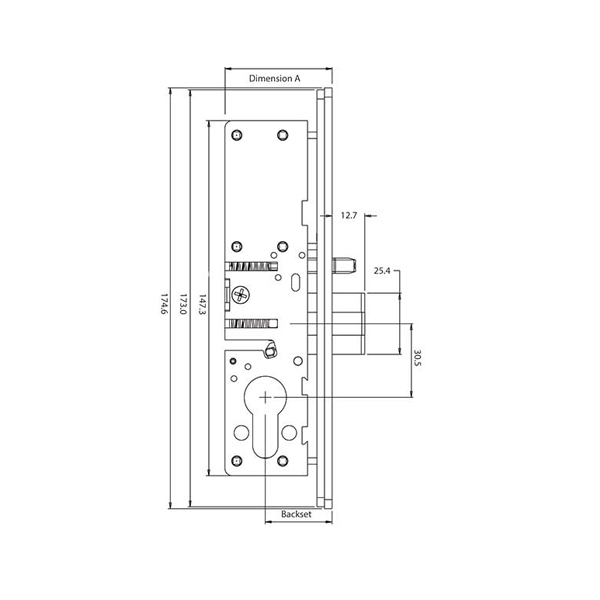

Conversion Chart
| Metric Backet | Dimension A |
| 25mm | 41.4mm |
| 28mm | 45.2mm |
| 38mm | 57.1mm |
Handing of doors for locks
The description of swinging door operation always viewed from the outside.
LH – door hinges on left
RH – door hinges on right
| Code | Description | For use with | Finish |
| 5245701 | Deadlatch to suit 17mm europrofile cylinder 25mm backset (RH) | N/A | |
| 5245702 | Deadlatch to suit 17mm europrofile cylinder 25mm backset (LH) | N/A | |
| 5245703 | Deadlatch to suit 17mm europrofile cylinder 28mm backset (RH) | N/A | |
| 5245704 | Deadlatch to suit 17mm europrofile cylinder 28mm backset (LH) | N/A | |
| 5245705 | Deadlatch to suit 17mm europrofile cylinder 38mm backset (RH) | N/A | |
| 5245706 | Deadlatch to suit 17mm europrofile cylinder 38mm backset (LH) | N/A |
Faceplates and Accessories
| 52FP4511 | Flat faceplate – width 25mm | 4510/4570 | SAA |
| 52FP4512 | Radius faceplate – width 25mm | 4510/4570 | SAA |
| 52FP4513 | Radius faceplate with weather strip – width 25mm | 4510/4570 | SAA |
| 5245-FIX-KIT | Deadlatch fixing kit- width 25mm | 4570/4510 | N/A |

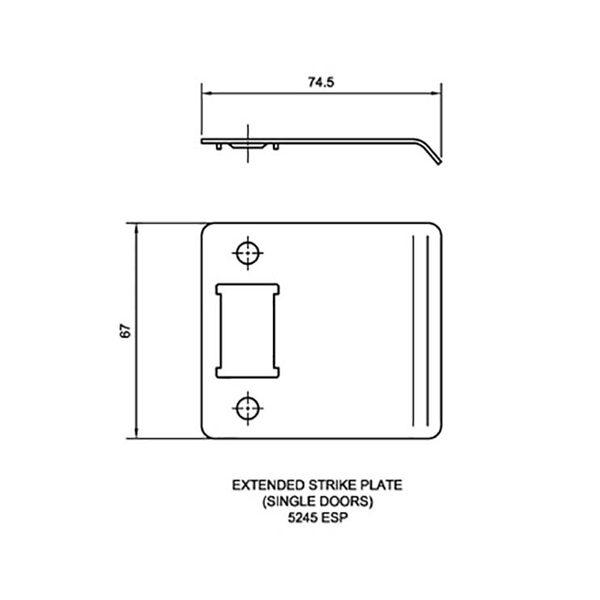

| 5245ESP | Extended strike plate | 4570/4510 | N/A |

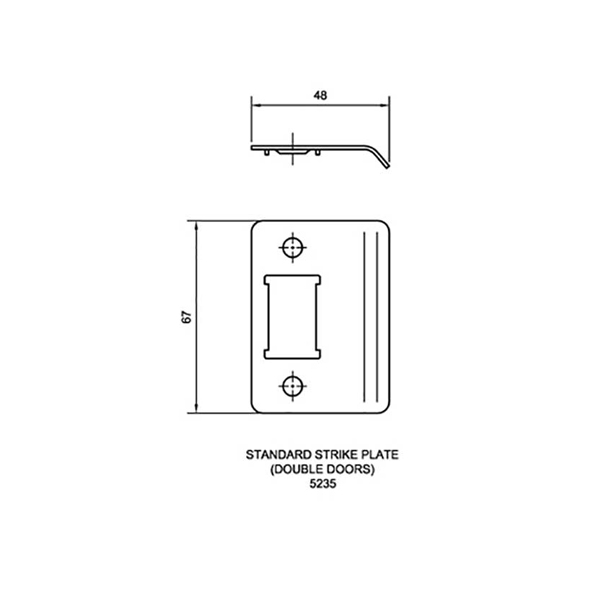

| 5235 | Strike plate | N/A |
