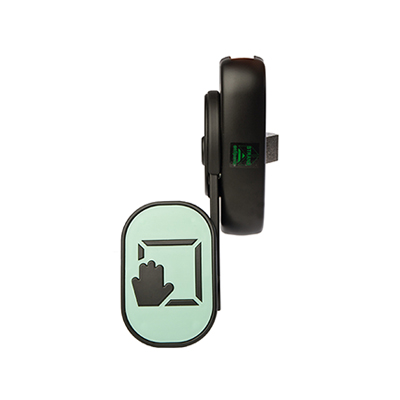

The push pad emergency exit range comprises of modular components together with a push pad.
The range offers a large degree of flexibility and can provide 1, 2 and 3 point latches (with horizontal or side entry Pullman latches) and 2 or 3 point bolts (with vertical pullman latches).
Suitable for offices and buildings where people are familiar with the exits and hardware therefore a panic situation is unlikely to develop.
Standard devices suitable for doors up to 2585mm high, for larger doors extra-long kits are available to suit doors up to 3150mm high.
Application
Supplied with striker plates for timber doors as standard.
Strikers also available for PVC-U, Aluminium and Steel doors (Please specify when ordering).
Microswitch
The modular cross bar range can be provided with a microswitch contained in either the operating mechanism or idler.
If required please specify at the time of ordering stating the microswitch location (Additional cost).
Dogging facility:
Dogging should not be used on the fire/smoke door assemblies.
The modular range is available with a dogging or hold-back facility (Additional cost).
Can only be used on escape doors.
If required specify when ordering.
Outside access
Optional outside access devices are available to provide entry from the outside (Refer to Outside Access data sheet).
| Code | Description | Finish |
| 83PH3520320 | Single point push pad latch | Silver EPS (20) |
| 83PH3520320 | Single point push pad latch | Black EPB (01) |
| 83PH3520320 | Single point push pad latch | White EPW (25) |
| 83PH3520320 | Single point push pad latch | Satin Stainless Steel Plated SSSP (44) |
| 83PH3520320 | Single point push pad latch | Polished Stainless Steel Plated PSSP (55) |
| 83PH3520320 | Single point push pad latch | Polished Brass Plated BP (43) |
| 83PH3560320 | Reversible 2/3-point push pad bolt | Silver EPS (20) |
| 83PH3560320 | Reversible 2/3-point push pad bolt | Black EPB (01) |
| 83PH3560320 | Reversible 2/3-point push pad bolt | White EPW (25) |
| 83PH3560320 | Reversible 2/3-point push pad bolt | Satin Stainless Steel Plated SSSP (44) |
| 83PH3560320 | Reversible 2/3-point push pad bolt | Polished Stainless Steel Plated PSSP (55) |
| 83PH3560320 | Reversible 2/3-point push pad bolt | Polished Brass Plated BP (43) |
| Various other RAL colours and plated finishes are available to special order. Please contact us toenquire. | ||
| Strikers | ||
| 83PH3580320 | Three point push pad latch |
