The AL1982-35.5 mortice door magnet is designed for use when a mortice installation is required. When external pressure is applied to open the magnet and break the hold of the unit, the pivoting pin head fitted into the electro magnet holes will initiate an additional locking from the upward movement of the integrated ball bearings which hold the pivoting pin head on the armature plate securely.
Features Include
- High Holding Force
- Releases under Side Load Pressure
- Dual Monitoring
- Early Warning Alarm EW Technology
- 5 Year Guarantee
When the power is disengaged from the magnet, it releases its hold on the armature plate and it returns to it normal state.
The unit requires a filtered and regulated DC power supply of the correct voltage to ensure the attraction of the armature plate is initiated. The unit operates on 12/24vDC and is complete with two build in SPST reed switch sensors for remove lock monitoring status and remote door monitoring status.
High Holding Force
Holding force 1,500Kg
Releases under Side Load Pressure
Magnet will release with up to 100Kg of side load pressure when the power is removed
Weight
1.3Kg

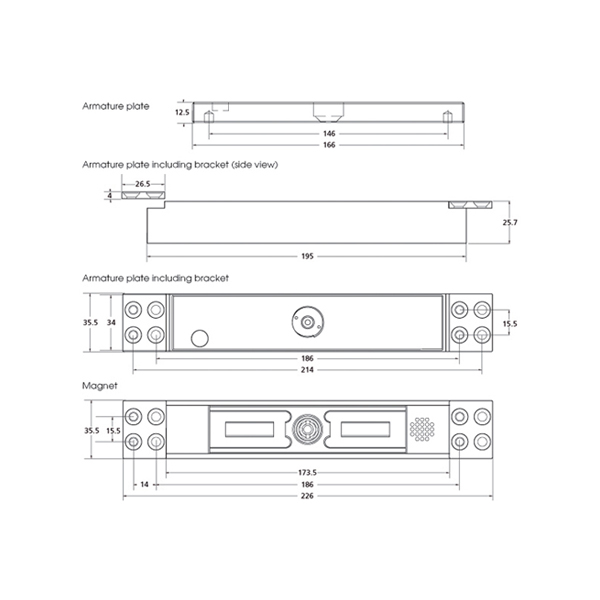

Magnet Body Dimensions
226mm(L) x 35.5mm(W) x 26.5mm(D)
Armature Plate (including bracket) Dimensions
226mm(L) x 35.5mm(W) x 25.7mm(D)
Multiple Voltage Input
Any voltage from 12vDC to 24vDC
Low Current Consumption
Volts Current
12vDC 240mA
24vDC 120mA
Dual Monitoring
Locking and door position
Early Warning Alarm EW Technology
Magnets are fitted with EW pressure sensors able to send an alarm before access is gained. Also fitted with buzzer.
Built-in MOV Surge Protection
Mortice mounting for concealed installation
Armature plate security bracket
No residual magnetism
ISO and TÜV tested
Patented
Approvals
EN61000-4-2:1995 + A1 (1998) + A2 (2001)
EN61000-4-3:2006 + A1 (2008)
EN61000-4-4:2004
EN61000-4-5:2006
EN61000-4-6:2007
EN61000-6-2:2005
EN61000-6-3:2007
EN50130-4:1996 + A1 (1998) + A2 (2003)
EN55022:1998 + A1 (2000) + A2 (2003)
| Description | Finish | Code |
| Small mortice mounted door magnet – 12/24vDC | Satin Anodised | AL1982-35.5 |
