The AS626S waterproof keypad is simple to install and user friendly. This aesthetically designed and vandal resistant keypad is suitable for up to 200 users. It is slim and secure and uses solid state Piezo technology so has are no moving parts and is manufactured to highest standards for external or internal use. Anodised graphics for long life and wear resistant.
Features Include
- No Moving Parts
- Tamper and Vandal Resistant
- Visual & Audible Feedback
- Non Volatile Memory
- 5 Year Guarantee
Available as a self contained access control system. The solid one-piece construction ensures vandal and tamper resistance.
They operate over a wide temperature range (-4oF to +250oF) and are weather resistant to IP68 protection which is the highest certification available.
No Moving Parts
Solid state Piezo technology
Waterproof – IP68 Certificated
Highest certification available
Slimline Design

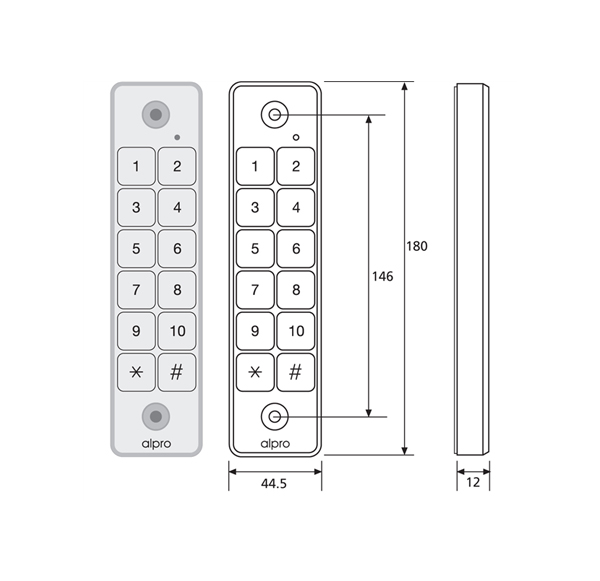

44.5mm (W) x 181mm (L) x 12mm (D)
Tamper Resistant
Security plugs provided
Vandal Resistant
One piece solid housing
Variable Length Codes
From 4 to 8 digit codes can be used simultaneously
Electrical Features
2 amp changeover relay
12v AC or 12-24v DC (±10%) power 120mA max
Visual & Audible Feedback
Timeout functions for code entry and programming
Up to 200 User Codes
100 million combinations 4 to 8 digit codes
Non Volatile Memory
Anodized Graphics
Long life – wear resistant
Approvals
CE and UL
| Description | Code |
| Self contained single door access control – 200 users – slim surface mount, 2×6, 2 LED, outdoor/indoor, bright aluminium | AS-626S-200/3M |
| Cable, replacement, between keypad and controller, 12′ of cable with connectors | AST10CABLE |
