Electric ANSI Strikes AL110

Feb 21, 2024

The Alpro AL110 series is an ANSI style security strike complete with stainless steel short or long faceplate for use in metal, timber and some composite door applications.

Features Include

High Holding Force
Simple Fail Safe/Fail Secure Changeover
Weather Resistant
Easy Installation
6 Year Guarantee

12/24V Selectable

Stainless Steel Face Plate

Compact Cast Aluminium Body

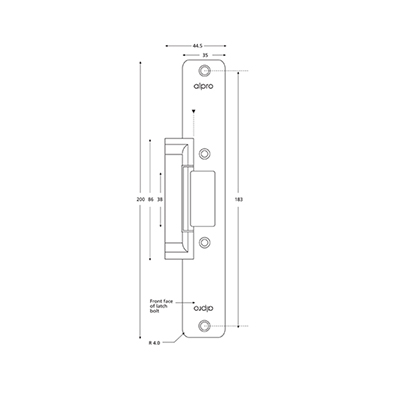

35mm overall depth

Deep Jaw
Accepts 13mm latch bolt

Low Current Consumption
200mA – 12V DC continuous (±15%)
100mA – 24V DC continuous (±15%)

Simple Fail Safe/Fail Secure Changeover

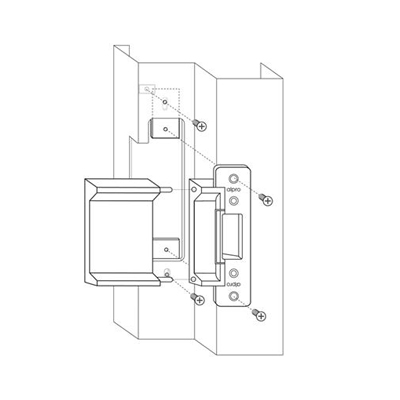

Easy Installation
Stick on/peel off template

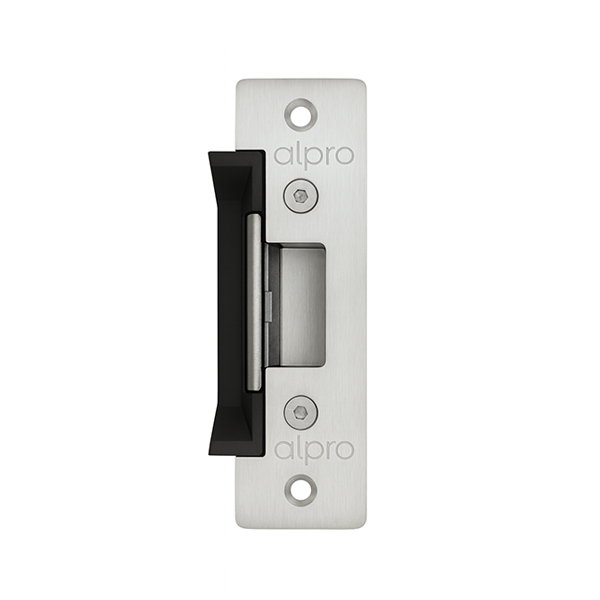

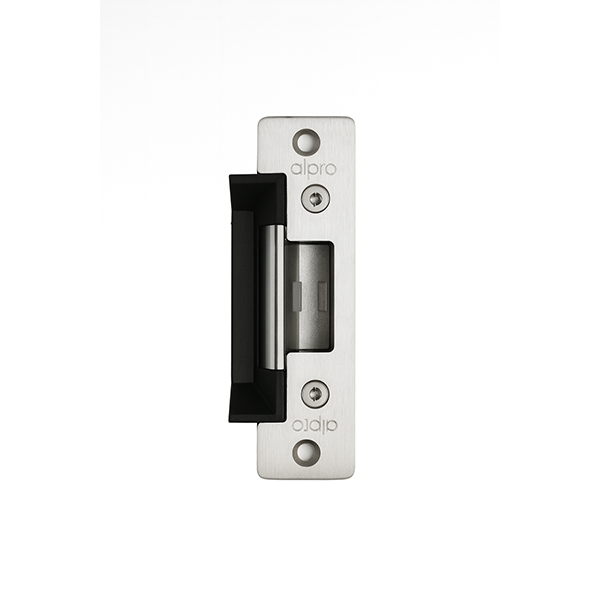

Monitored and Lipless Versions Available

Weather Resistant – IP56 Protection as Standard

Options
ANSI short or long faceplates Extension lips to be purchased separately, available in – 15, 25, 50 and 75mm (pre- drilled strike body)

Approvals
EN 61000-6-3 : 2021
EN 61000-4-2 : 2009
EN 61000-4-8 : 2010
EN 61000-4-6 : 2014

Lock Compatibility
Accepts 13mm latch bolt when fitted with 3mm door

Description	Function	Code
12/24V DC ANSI Short SS Strike including mounting kit	Fail Safe / PTL	AL111AS
12/24V DC ANSI Short SS Strike including mounting kit	Fail Secure / PTO	AL112AS

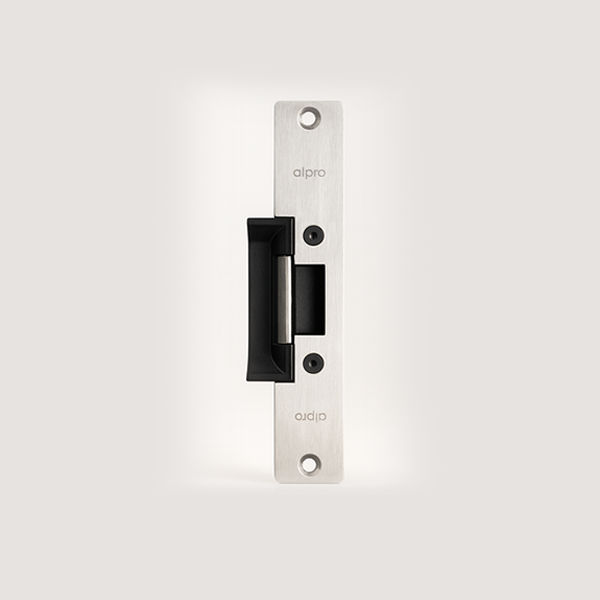

12/24V DC ANSI Long SS Strike including mounting kit	Fail Safe / PTL	AL111BS
12/24V DC ANSI Long SS Strike including mounting kit	Fail Secure / PTO	AL112BS

For monitored version add -M to code e.g. AL111AS-M For lipless version add -O to code e.g. AL111AS-O

Accessories
15mm Extension Lip	ALEX1115
25mm Extension Lip	ALEX1125
50mm Extension Lip	ALEX1150
75mm Extension Lip	ALEX1175
Rectifier Sounder Module	IEC-RM1
13mm Rebate Plate	ALS1113
Radius Brushed Aluminium Faceplate	AL110RADIUS
Euro Sashlock Faceflate Non-Handed	AL110SLEU
UK Sashlock Faceflate Non-Handed	AL110SLUK

AL110 ANSI Electric Strike Datasheet

AL110 ANSI Electric Strike Instructions

FAQs

I need some help with an install, who can I speak to for help?

We are working hard to update our website with as much information as possible so this is the best place to look for 24/7 support. If you cannot find the answer you require, please give us a call on 01202 676262, option 3.

Can this strike be used on wooden as well as aluminium doors?

Yes, these can be used for wooden doors as well as aluminium. For wooden doors you would need for the ‘B’ version with the long face plate.

Can I change the functionality of the AL110 strikes?

Yes, these strikes can easily be changed from PTL to PTO and are also 12/24 volt interchangeable! To change from PTL (fail safe) to PTO (fail secure) whilst holding the strike over a clear surface, remove the screw cap positioned on the bottom. Inside you will find a barbell, take this out and put it back in the opposite way.

What power supply do I need?

Each AL110 will require a dedicated 2 amp.

I have a AC power supply – is this strike suitable?

Yes, paired with our RM1
you can use this strike on AC power supply.

Have these been fire tested?

No.

Can this electric strike be fitted with a dead bolt?

Yes, using either the AL110SLEU or AL110SLUK you can fit these together to enable the strike to be locked off at night. Day operation would be with the lock bolt retracted.

Can I change the handing?

Yes, there is no handed option for the strikes – you just need to turn the strike upside down.

Is this strike rated to IP56?

Yes it is.

Can these be fitted on gates?

The ALL10 is not waterproof. Whilst it can be used on gates you may find you have issues due to water egress, applying silicone around the strike can help to prevent water egress however we could not guarntee this.

What core cable is required for the strikes?

If you are using a non-monitored strike any cat 4 would be fine. If you are using monitored, you would need a cat 5 or cat 6.

What does PTL stand for?

PTL stands for Power To Lock, otherwise known as fail safe. When the power is cut/fails this strike will disengage as the power is needed to lock it.

What does PTO stand for?

PTO stands for Power to Open, otherwise known as fail secure. When the power is cut/fails this strike will stay engaged as the power is needed to open it. Please note we do not advise a PTO lock to be fitted on an exit route door in case the power fails in an emergency situation. This should always be used with a battery back up.

Why does my strike only work when held upside down?

Gravity is assisting with the strike operation, meaning not enough power is reaching the strike. It is likely this has been wired to 24v rather than the 12v. Please check your wiring against the diagram in our installation instructions. If this is wired correctly please check the power supply unit. Each strike will require a minimum of 2amp.
