Straight D Pull Handle Impressionist 01

Petek Yasar

Feb 29, 2024

Image of Impressionist 01 pull handle product

The Impressionist range of door handles are bold and modern in appearance, as well as being practical in everyday use. Manufactured in 32mm diameter, the look and feel is strong and robust, yet aesthetically pleasing to the eye and designed for aluminum, timber and glass door applications.
Available from stock in satin anodised aluminum (SAA), stainless steel (SSS), and polished stainless steel (PSS).
Handles are also available in coated finishes upon request. Additional lead times should be allowed for these items and may be subject to a surcharge.

Features Include

Bold and Modern Appearance
Strong and Robust
Available in Numerous Finishes

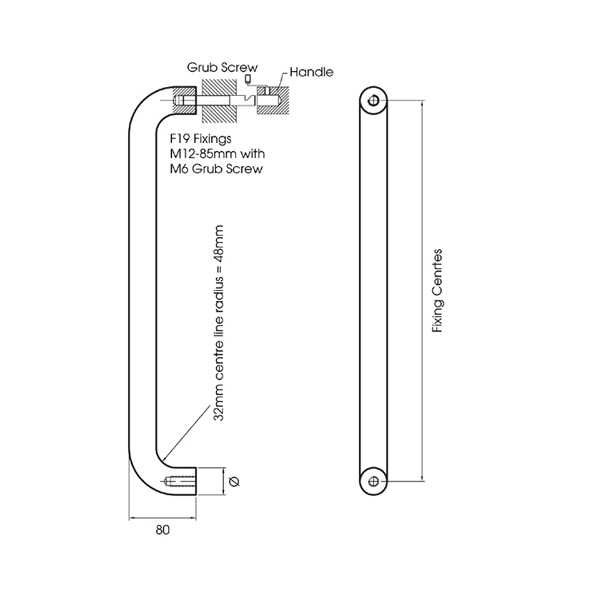

Image of Impressionist 01 Pull Handle diagram

Back to back kits come with F19, F20 and F21fixings.

Bolt-thru kits come with F26 and F34 fixings.

Stainless steel and polished stainless steel handles are manufactured from 316 grade stainless steel.

Description	Size/Tube Diameter	Finish	Code
01 Series Straight D Handle	300mm / 32mm	SAA	01.300.32.P.SAA
01 Series Straight D Handle	300mm / 32mm	SSS	01.300.32.P.SSS
01 Series Straight D Handle	300mm / 32mm	PSS	01.300.32.P.PSS
01 Series Straight D Handle	400mm / 32mm	SAA	01.400.32.P.SAA
01 Series Straight D Handle	400mm / 32mm	SSS	01.400.32.P.SSS
01 Series Straight D Handle	400mm / 32mm	PSS	01.400.32.P.PSS
01 Series Straight D Handle	600mm / 32mm	SAA	01.600.32.P.SAA
01 Series Straight D Handle	600mm / 32mm	SSS	01.600.32.P.SSS
01 Series Straight D Handle	600mm / 32mm	PSS	01.600.32.P.PSS

Impressionist-01-Pull-Door-Handle-Datasheet.pdf

Alpro-Pull-Door-Handle-Fixings-Apr18.pdf

Pull-Door-Handle-Pair-Fixings-F19-F20-F21-Instructions-Nov16.pdf

Pull-Door-Handle-Other-Fixings-F34-F22-F25.2-Instructions-Nov16.pdf

FAQs

Is there a charge for delivery?

Carriage and packing are included in orders over £250.00. A charge of £12.50 is made on lower value orders to cover carriage, packing and insurance. For deliveries to Ireland please speak to the office for pricing.

Can you fit additional centre supports to longer length handles?

Yes, we recommend centre supports on longer length handles to give better stability.

What is the size of the hole to drill for glass fixings?

M12 fixing – 18mm diameter, M8 fixing – 12mm diameter.

Do stainless steel and aluminium handles need any maintenance?

Yes. In certain environments, such as a particularly salty atmosphere, cleaning will be required at regular intervals of between three and six months.

How do I clean steel and aluminium handles?

In a normal environment e.g. where oil or grease marks need to be removed, use a proprietary stainless steel cleaning agent. Vitopan or a 3M cleaner is suggested.

What about salty environments?

For the onset of corrosion or rust (due to exposure to salt air) an oxalic acid should be used. But this should be applied and allowed to stand for 25 minutes. Please ensure all manufacturers safety directions are followed and carried out at all times, when using these types of products.

Do coated handles need maintenance?

Yes. A mild solution of warm water with the appropriate detergent is suggested. All surfaces of the handle should be cleaned, using a soft cloth or brush and then dried thoroughly.

Do aluminium and anodised handles need cleaning?

Yes. Wipe over with a damp cloth and then dry thoroughly. Then wipe the handle with a wax polish to ensure ongoing aesthetics. Never use metal cleaning agents on aluminium anodised furniture.

Can I just use water to clean handles?

No, do not use water on is own, follow the instructions in Q9 above for lasting trouble free handle life.

Why is Nylon coating more expensive than powder coating?

You get better a quality handle which is more durable because of the process it goes through and that base nylon material is more expensive.

What fixings do I need to use on various handles?

Impressionist/Functional Series handles back to back fixings as follows:
Standard door thickness (39-54mm) – F19 fixings
Extra thick doors (55-85mm) – F20 fixings
Glass doors (M12-55mm) – F21 fixings

Bolt through fixing arrangement as follows:
Standard thickness (39-54) – F17 (F26 with cap) fixings
Extra thick doors (55-89mm) – F18 fixings

Functional 99 Series handles both back to back and bolt through as follows:
Standard door thickness (39-54) – F27 fixings
Extra thick doors (55-89mm) – F28 fixings
Glass doors – F29 fixings
