Functional 99 Pad Handle Functional 99 Pad Handle Functional 99 Pad Handle
Functional 99 Pad Handle
Functional 99 Pad Handle
Functional 99 Pad Handle

Functional 99 Pad Handle

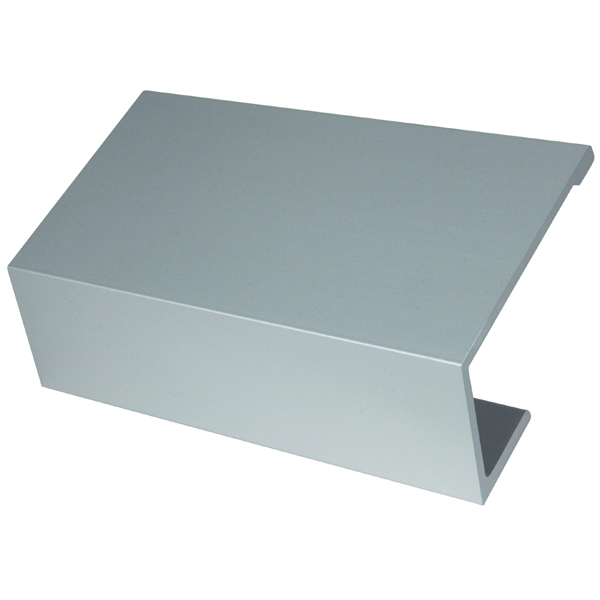

The 99 series is an attractive pad handle.

Alpro door handles are designed for aluminum, timber and glass door applications.

Manufactured in a variety of finishes.

Available from stock in aluminium. Powder coated and painted nylon coated versions available on request.

Fixings kits are available for doors 39-54mm wide and 55-85mm wide.

Features Include

  • Variety of Finishes
  • Available from Stock

  • Specification
  • Order info
  • Documents
  • FAQs

Specification

Series 99-332

Projection 50

Finishes Available

Satin Anodised (SAA)
Powder Coated (PC)
Mill (MILL)
Painted Nylon Coat (NC)

Colour Options

Powder coated handles and painted nylon coat handle colours are not ex-stock.

For price and availability of these finishes please contact our Sales Team on 01202 676262.

Additional lead times should be allowed for these items and may be subject to a paint surcharge.

Fixing Kits

Fixings not provided

(1 per handle or 1 per back to back pairs)
99.PADFIXKIT1 - Doors 39 - 54mm thick
99.PADFIXKIT2 - Doors 55 - 85mm thick

Please Note

Handles are sold singular

Order info

CodeDescriptionVersion/SizeFinish
99.332.MILLAluminium Pad Handle 200x116mm50mmMill
99.332.SAAAluminium Pad Handle 200x116mm
50mmSAA
99.332.PCAluminium Pad Handle 200x116mm50mmPC*
Fixing Kits
99.PADFIX-KITFixing Kit for doors 39-54mm Wide

99.PADFIX-KIT2Fixing Kit for doors 55-85mm Wide

* Depending on colour these handles will be subject to a paint surcharge to be agreed at time of order.



Documents

FAQs

FAQs


Is there a charge for delivery?

Carriage and packing are included in orders over £250.00. A charge of £10.00 is made on lower value orders to cover carriage, packing and insurance. For deliveries to Ireland please speak to the office for pricing.

Can you fit additional centre supports to longer length handles?

Yes, we recommend centre supports on longer length handles to give better stability.

What is the size of the hole to drill for glass fixings?

M12 fixing - 18mm diameter, M8 fixing - 12mm diameter.

Are the fixings included in the price?

Yes, but we need to know what type of door the handles are to be fitted on i.e. Glass, Timber or Aluminium. We only include standard fixings i.e. F19, F17. All other fixings are at additional cost.

Do stainless steel and aluminium handles need any maintenance?

Yes. In certain environments, such as a particularly salty atmosphere, cleaning will be required at regular intervals of between three and six months.

How do I clean steel and aluminium handles?

In a normal environment e.g. where oil or grease marks need to be removed, use a proprietary stainless steel cleaning agent. Vitopan or a 3M cleaner is suggested.

What about salty environments?

For the onset of corrosion or rust (due to exposure to salt air) an oxalic acid should be used. But this should be applied and allowed to stand for 25 minutes. Please ensure all manufacturers safety directions are followed and carried out at all times, when using these types of products.

Do coated handles need maintenance?

Yes. A mild solution of warm water with the appropriate detergent is suggested. All surfaces of the handle should be cleaned, using a soft cloth or brush and then dried thoroughly.

Do aluminium and anodised handles need cleaning?

Yes. Wipe over with a damp cloth and then dry thoroughly. Then wipe the handle with a wax polish to ensure ongoing aesthetics. Never use metal cleaning agents on aluminium anodised furniture.

Can I just use water to clean handles?

No, do not use water on is own, follow the instructions in Q9 above for lasting trouble free handle life.

Why is Nylon coating more expensive than powder coating?

You get better a quality handle which is more durable because of the process it goes through and that base nylon material is more expensive.

What fixings do I need to use on various handles?

Impressionist/Functional Series handles back to back fixings as follows:

Standard door thickness (39-54mm) - F19 fixings
Extra thick doors (55-85mm) - F20 fixings
Glass doors (M12-55mm) - F21 fixings

Bolt through fixing arrangement as follows:
Standard thickness (39-54) - F17 (F26 with cap) fixings
Extra thick doors (55-89mm) - F18 fixings

Functional 99 Series handles both back to back and bolt through as follows:
Standard door thickness (39-54) - F27 fixings
Extra thick doors (55-89mm) - F28 fixings
Glass doors - F29 fixings
