Impressionist 03 Pull Handle Impressionist 03 Pull Handle
Impressionist 03 Pull Handle
Impressionist 03 Pull Handle

Impressionist 03 Pull Handle

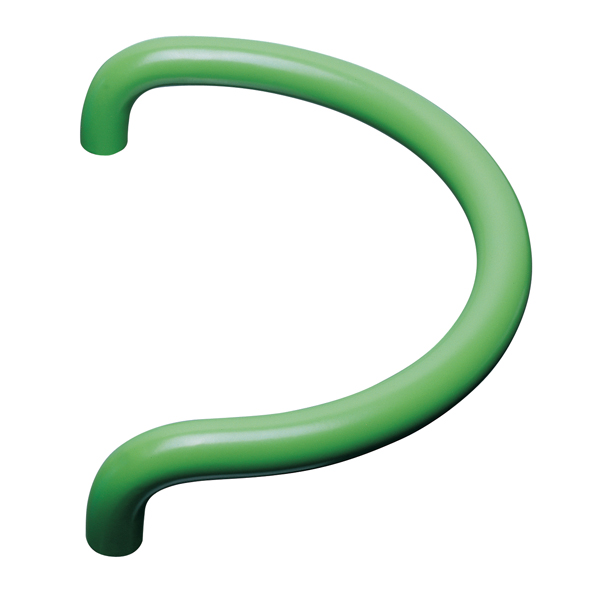

The Impressionist 03 Series door handle is a circular pull handle.  These pull door handles are designed for aluminium, timber and glass door applications.

The Impressionist range of pull door handles are bold and modern in appearance, as well as being practical in everyday use. Manufactured in 32 & 38mm diameter, the look and feel is strong and robust, yet aesthetically pleasing to the eye. Available from stock in aluminium, stainless steel, polished stainless steel and a numerous range of painted nylon coated colours in the 02 and 05 Series; this range truly does make “an impression”.

Features Include

  • Bold and Modern Appearance
  • Strong and Robust
  • Available in Numerous Finishes

  • Specification
  • Order info
  • Documents
  • FAQs

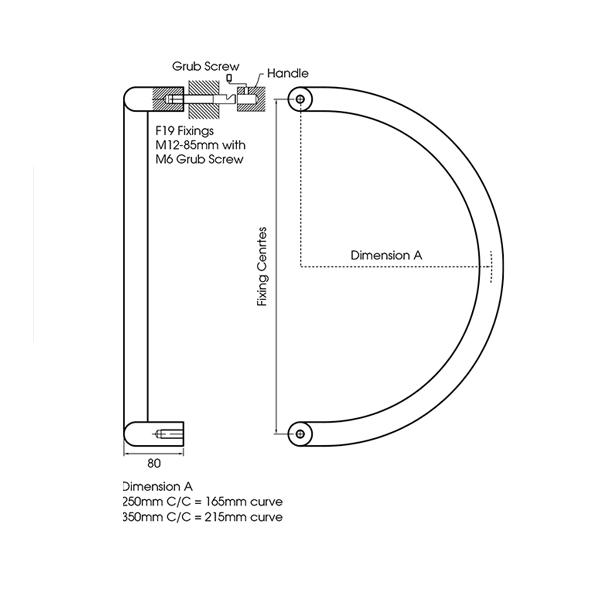

Specification

Series Imp 03

Diameter  32  38
Centres 250 350
Projection 80

Finishes Available

Satin Anodised (SAA)
Satin Stainless (SSS)
Polished Stainless (PSS)
Powder Coated (PC)
Painted Nylon Coated (NC)

Colour Options

Powder coated and painted Nylon coated handle colours are not ex-stock. For price and availability of these finishes please contact our Sales Team on 01202 676262. Additional lead times should be allowed for these items and may be subject to a paint surcharge.

Fixing Kits

Handles are supplied with bolt-thro or back to back fixing as standard. Fixing kit information can be found at the back of the door handle catalogue.

Back to back kits come with F19, F20 & F21 fixings. Bolt-thro kits come with F26 & F34 fixings.

Please Note

Stainless steel handles are manufactured from 304 grade stainless steel and polished stainless steel.

Order info

CodeDescriptionVersion/SizeFinish
32mm Diameter
03.250.32.P.SAA03 Series circular pull handle250mm/32mmSAA
03.250.32.P.SSS03 Series circular pull handle250mm/32mmSSS
03.250.32.P.PSS03 Series circular pull handle250mm/32mmPSS
38mm Diameter
03.350.38.P.SAA03 Series circular pull handle350mm/38mmSAA
03.350.38.P.SSS03 Series circular pull handle350mm/38mmSSS
03.350.38.P.PSS03 Series circular pull handle350mm/38mmPSS


Documents

FAQs

FAQs


Is there a charge for delivery?

Carriage and packing are included in orders over £250.00. A charge of £10.00 is made on lower value orders to cover carriage, packing and insurance. For deliveries to Ireland please speak to the office for pricing.

Can you fit additional centre supports to longer length handles?

Yes, we recommend centre supports on longer length handles to give better stability.

What is the size of the hole to drill for glass fixings?

M12 fixing - 18mm diameter, M8 fixing - 12mm diameter.

Are the fixings included in the price?

Yes, but we need to know what type of door the handles are to be fitted on i.e. Glass, Timber or Aluminium. We only include standard fixings i.e. F19, F17. All other fixings are at additional cost.

Do stainless steel and aluminium handles need any maintenance?

Yes. In certain environments, such as a particularly salty atmosphere, cleaning will be required at regular intervals of between three and six months.

How do I clean steel and aluminium handles?

In a normal environment e.g. where oil or grease marks need to be removed, use a proprietary stainless steel cleaning agent. Vitopan or a 3M cleaner is suggested.

What about salty environments?

For the onset of corrosion or rust (due to exposure to salt air) an oxalic acid should be used. But this should be applied and allowed to stand for 25 minutes. Please ensure all manufacturers safety directions are followed and carried out at all times, when using these types of products.

Do coated handles need maintenance?

Yes. A mild solution of warm water with the appropriate detergent is suggested. All surfaces of the handle should be cleaned, using a soft cloth or brush and then dried thoroughly.

Do aluminium and anodised handles need cleaning?

Yes. Wipe over with a damp cloth and then dry thoroughly. Then wipe the handle with a wax polish to ensure ongoing aesthetics. Never use metal cleaning agents on aluminium anodised furniture.

Can I just use water to clean handles?

No, do not use water on is own, follow the instructions in Q9 above for lasting trouble free handle life.

Why is Nylon coating more expensive than powder coating?

You get better a quality handle which is more durable because of the process it goes through and that base nylon material is more expensive.

What fixings do I need to use on various handles?

Impressionist/Functional Series handles back to back fixings as follows:

Standard door thickness (39-54mm) - F19 fixings
Extra thick doors (55-85mm) - F20 fixings
Glass doors (M12-55mm) - F21 fixings

Bolt through fixing arrangement as follows:
Standard thickness (39-54) - F17 (F26 with cap) fixings
Extra thick doors (55-89mm) - F18 fixings

Functional 99 Series handles both back to back and bolt through as follows:
Standard door thickness (39-54) - F27 fixings
Extra thick doors (55-89mm) - F28 fixings
Glass doors - F29 fixings
