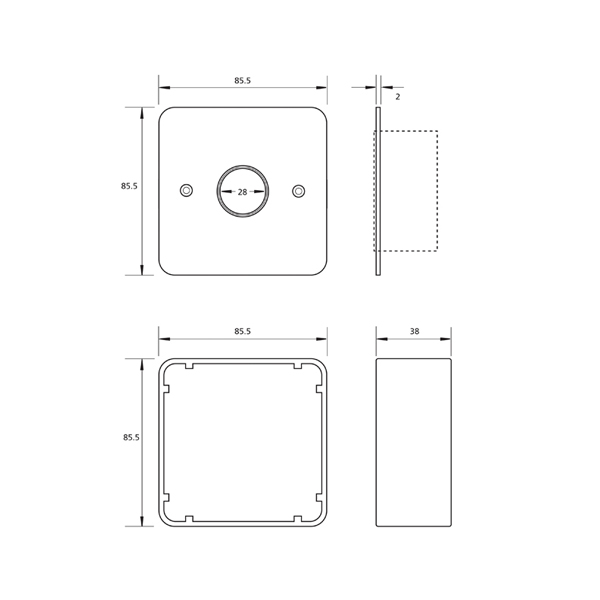

The Alpro waterproof exit switches are available in Natural Aluminium with two different switch plate sizes – MK 1 gang and Narrow Style for flush or surface mounting.

These waterproof exit switches offer fully weatherproofed to IP68 protection which is the highest certification available.  Requiring only light pressure to operate they are tested to in excess of 500,000 cycles and are tamper and vandal resistant.

Features Include

  • No moving parts - solid state Piezo technology
  • Waterproof – IP68 Certificated
  • Intrinsically Safe
  • CE approved
  • 5 Year Guarantee

  • Specification
  • Order info
  • Documents
  • FAQs

Specification

They use solid state Piezo technology so there are no moving parts and are manufactured to high standards.

No Moving Parts
Solid state Piezo technology

Waterproof – IP68 Certificated
Highest certification available

Tamper and Vandal Resistant
Switch Activation Time
One shot 120m sec.

Cycle Tested
In excess of 500,000 cycles

Electrical Features
Normally open
Max 0.2A @ 24v AC/DC (1.0A model on request)

Intrinsically Safe
Switches without LED
UL certificated

Approvals
CE and UL

Order info

DescriptionCode
SMA Switch - Non LED - Intrinsically Safe
Natural anodised exit switch - MK1 gang switch plateIEC06/1N
Natural anodised exit switch - narrow style switch plateIEC06/1N/NS

Accessories


Surface mount housing for MK1 gangIEC0610/1
Surface mount housing for narrow styleIEC0620/1

Documents

FAQs

FAQs


Is there a charge for delivery?

Carriage and packing are included in orders over £250.00. A charge of £10.00 is made on lower value orders to cover carriage, packing and insurance. For deliveries to Ireland please speak to the office for pricing.

Do you provide any weather rated access control products?

Yes, our AL110 and AL150 electric strikes are weather rated to IP56 as standard. We also offer IP68 rated keypads and exit switches.

Do you have any information on CE Marking or CE Marking of Doorsets?

Please refer to our technical section under Standards.
