Electric ANSI Strikes EL900

·

·

The EL900 ANSI electric door strike is a compact electric strike with long or short faceplates for use in metal and timber applications. An extension lip is also included within the kit. It has a 35mm deep, compact stainless steel body design.
This electric strike is further available with or without monitoring and a full fixing kit is also supplied.

Features Include
  • Innovative function change over
  • Compact Body
  • Low Current Consumption
  • Accessories supplied as standard
  • 3 Year Guarantee

Image of Electric ANSI Strikes EL900 product

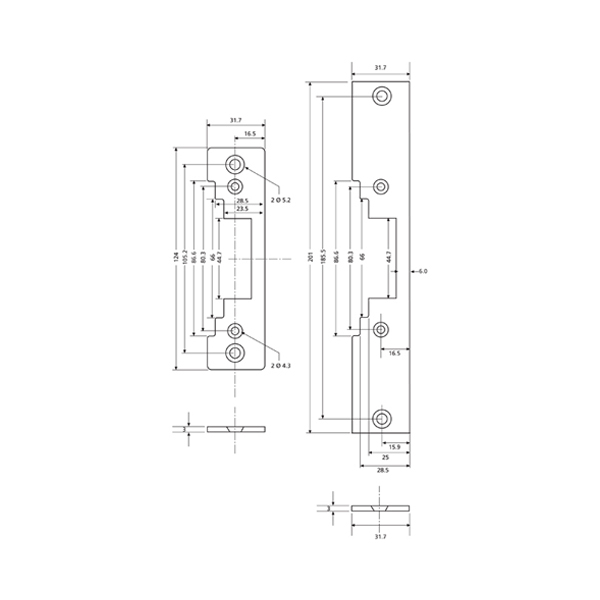

Image of Electric ANSI Strikes EL900 diagram

Construction
Compact body design – 35mm depth

Function
Innovative function change over from fail secure (PTO)/fail open (PTL)

Electrical Features
Low current consumption

Accessories
Long and short ANSI stainless steel faceplates supplied as standard
25mm extension supplied as standard
Mounting Kit supplied as standard

Technical Information
Power consumption and current draw
12vDC – 300mA
24vDC – 150mA

Wiring Monitoring
Red + Blue NC
12vDC – Green C
Red Yellow NO

The EL900 can be used in either fail open (PTL) or fail secure (PTO) mode. Simply ensure that the screw is positioned in either hole as per the illustration and either function can be achieved.

DescriptionCode
12vDC ANSI PTL fail open complete with SS short/long faceplate & 25mm extension lipEL901
12vDC ANSI PTL fail open monitored complete with SS short/long faceplate & 25mm extension lipEL901M
12vDC ANSI PTO fail secure complete with SS short/long faceplate & 25mm extension lipEL902
12vDC ANSI PTO fail secure monitored complete with SS short/long faceplate & 25mm extension lipEL902M
24vDC ANSI PTL fail open complete with SS short/long faceplate & 25mm extension lipEL903
24vDC ANSI PTL fail open monitored complete with SS short/long faceplate & 25mm extension lipEL903M
24vDC ANSI PTO fail secure complete with SS short/long faceplate & 25mm extension lipEL904
24vDC ANSI PTO fail secure monitored complete with SS short/long faceplate & 25mm extension lipEL904M
