Functional 98 Pull Handle

Petek Yasar

Mar 2, 2024

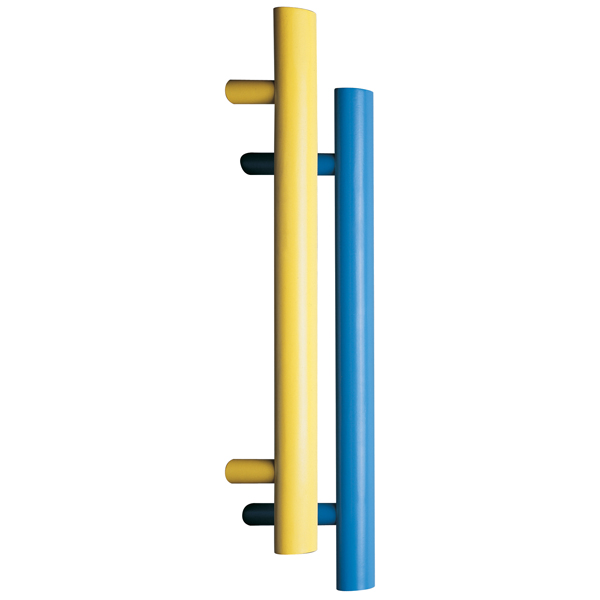

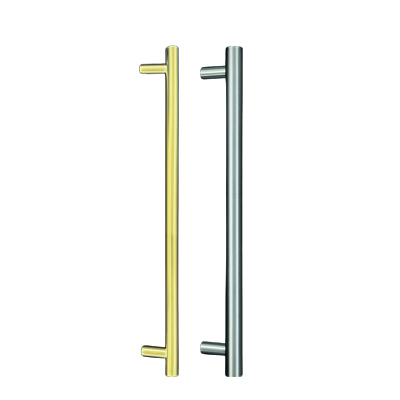

The Functional 98 series of pull handles are manufactured in 25, 32 and 38mm diameters. They are made in your requested length(up to 3000mm) and are designed for aluminum, timber and glass door applications.

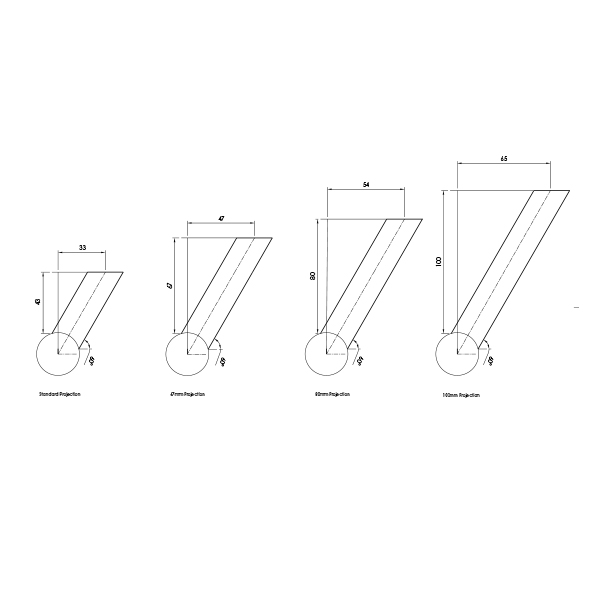

All versions are suitable for bolt-thru (single side fixing) or back to back fixing. Available with straight or offset pillars: Functional 98 series are available in the following finishes:
Satin Stainless (SSS), Polished Stainless (PSS) and mill as standard coated options are available on request.

Features Include

Range of Diameters
Variety of Finishes

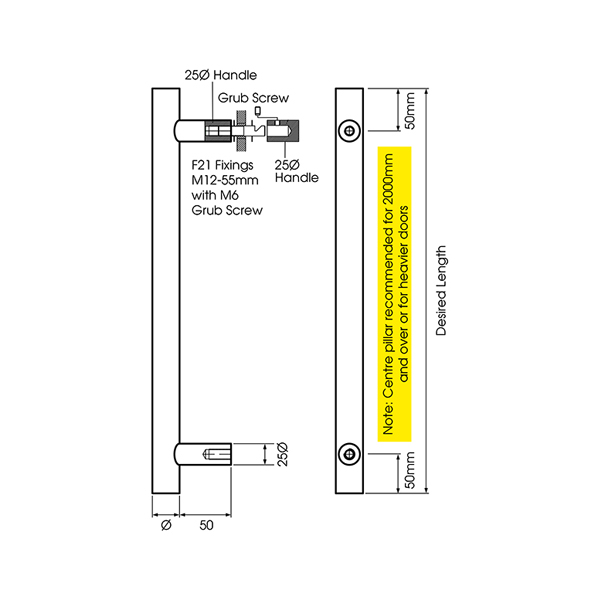

Image of Functional 98 Pull Handle diagram

• Handles are supplied with fixings as standard.
• Stainless steel and polished stainless steel handles are manufactured from 316 grade stainless steel.

Please Note
A center bracket is recommended for handles 2000mm and over or heavier doors.

Ordering Information
Functional 98 Series pull handles are made to order and available in a range of sizes. For pull handles of 2000mm and over or heavier doors a centre bracket is recommended. Coated finishes available upon request.

Description	Tube Diameter Finish Series
Pull Handles – Straight Brackets	25, 32 & 38mm SAA/SSS/PSS/PC/NC 98-327
Pull Handles – Offset Cranked Brackets	23, 32 & 38mm SAA/SSS/PSS.PC/NC 98-328

Example Ordering Guide – please specify the following details:

Series	Diameter	Size	Fixing Kit	Finish	Door Type
98-S or 98-C	25/32/38	400	F21	SSS/PSS	Aluminum

Functional 98 Pull Door Handle Datasheet

Alpro Pull Door Handle Fixings

Pull Door Handle Other Fixings F34 F22 F25.2 Instructions

FAQs

Is there a charge for delivery?

Carriage and packing are included in orders over £250.00. A charge of £12.50 is made on lower value orders to cover carriage, packing and insurance. For deliveries to Ireland please speak to the office for pricing.

Can you fit additional centre supports to longer length handles?

Yes, we recommend centre supports on longer length handles to give better stability.

What is the size of the hole to drill for glass fixings?

M12 fixing – 18mm diameter, M8 fixing – 12mm diameter.

Are the fixings included in the price?

Yes, but we need to know what type of door the handles are to be fitted on i.e. Glass, Timber or Aluminium and door thickness. We only include standard fixings FOC. Special fixings (i.e. F25.2 and F38) are available at an additional cost.

Do stainless steel and aluminium handles need any maintenance?

Yes. In certain environments, such as a particularly salty atmosphere, cleaning will be required at regular intervals of between three and six months.

How do I clean steel and aluminium handles?

In a normal environment e.g. where oil or grease marks need to be removed, use a proprietary stainless steel cleaning agent. Vitopan or a 3M cleaner is suggested.

What about salty environments?

For the onset of corrosion or rust (due to exposure to salt air) an oxalic acid should be used. But this should be applied and allowed to stand for 25 minutes. Please ensure all manufacturers safety directions are followed and carried out at all times, when using these types of products.

Do coated handles need maintenance?

Yes. A mild solution of warm water with the appropriate detergent is suggested. All surfaces of the handle should be cleaned, using a soft cloth or brush and then dried thoroughly.

Do aluminium and anodised handles need cleaning?

Yes. Wipe over with a damp cloth and then dry thoroughly. Then wipe the handle with a wax polish to ensure ongoing aesthetics. Never use metal cleaning agents on aluminium anodised furniture.

Can I just use water to clean handles?

No, do not use water on is own, follow the instructions in Q9 above for lasting trouble free handle life.

What fixings do I need to use on various handles?

Impressionist/Functional Series handles back to back fixings as follows:
Standard door thickness (39-54mm) – F19 fixings
Extra thick doors (55-85mm) – F20 fixings
Glass doors (M12-55mm) – F21 fixings

Bolt through fixing arrangement as follows:
Standard thickness (39-54) – F17 (F26 with cap) fixings
Extra thick doors (55-89mm) – F18 fixings

Functional 99 Series handles both back to back and bolt through as follows:
Standard door thickness (39-54) – F27 fixings
Extra thick doors (55-89mm) – F28 fixings
Glass doors – F29 fixings

On 98 Series handles how far are the pillars in?

50mm from each end, but can vary at customer request.
